Ball ValvesPN 40

3PC Flanged Ball Valve

A three-piece, full-port flanged ball valve designed to BS EN ISO 17292 (BS 5351), rated PN 40, with stainless or carbon steel body options.

Request a Quote Catalogue PDF

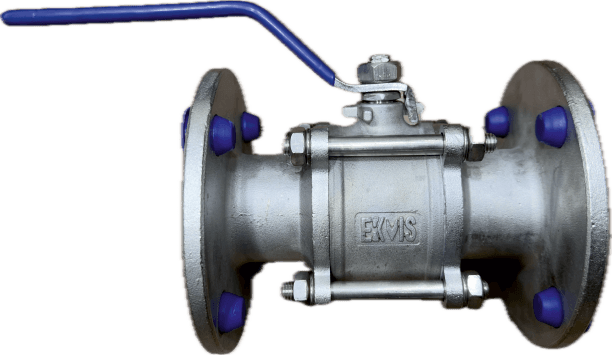

EKVIS 3PC flanged ball valve with stainless steel body, flanges and blue lever handle
Working pressure
PN 40
Size range
15–100 mm
Construction
3-piece body
End connection
Flanged ends

01Inspect

Explore the flanged valve.

Move across the valve to see its depth, then select a marker to inspect each component and its material specification.
EKVIS 3PC flanged ball valve with stainless steel body, flanges and blue lever handle

Select a marker to inspect a component.

02Key features

Designed for dependable isolation.

The EKVIS 3PC Flanged Ball Valve is a full-port, three-piece design built to BS EN ISO 17292 (BS 5351), with a precision investment-cast body and a blowout-proof stem.
  • 01

    3-piece body construction

    Three-piece body with a centre section between two flanged ends.

  • 02

    Full port

    Full-bore flow path through the valve.

  • 03

    BS EN ISO 17292 design

    Designed to BS EN ISO 17292 (BS 5351).

  • 04

    Blowout-proof stem

    Stem design that cannot be ejected under line pressure.

  • 05

    Working pressure PN 40

    Rated for a working pressure of PN 40.

  • 06

    Locking handle on request

    Handle with locking device available on request.

Standards & materials summary

Design standard
BS EN ISO 17292 (BS 5351)
Body & flanges
ASTM A351 GR.CF8/CF8M / ASTM A216 GR. WCB
Seats & seals
PTFE to BS 6564

Component materials

Reproduced from the EKVIS catalogue: part, material, specification and quantity per valve.

3PC Flanged Ball Valve component materials
01Body×1Stainless Steel / Carbon SteelASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB
02Ball×1Stainless SteelASTM A351 GR.CF8/CF8M/ ASTM A276 GR. 304/316
03Ball Seat×2PTFEBS 6564
04Flange×2Stainless Steel / Carbon SteelASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB
05Flange Seal×2PTFEBS 6564
06Stem/Spindle×1Stainless SteelASTM A276 GR. 304/316
07Thrust Washer/ Packing×2PTFEBS 6564
08Gland Nut×1Stainless SteelAISI 202/304/316
09Handle×1Stainless Steel / Carbon SteelAISI 202/304/316
10Sleeve×1PVCBS 6576
11Handle Lock Nut×1Stainless SteelAISI 304/316

All dimensions are in mm unless otherwise mentioned. Data is subject to change without notice due to continuous developments and upgrades.

Size & pressure

15 mm – 100 mm (DN 15 – DN 100) at a working pressure of PN 40.

3PC Flanged Ball Valve sizes and working pressure
SizeDNWorking pressureEnds
15 mmDN 15PN 40Flanged ends
20 mmDN 20PN 40Flanged ends
25 mmDN 25PN 40Flanged ends
32 mmDN 32PN 40Flanged ends
40 mmDN 40PN 40Flanged ends
50 mmDN 50PN 40Flanged ends
65 mmDN 65PN 40Flanged ends
80 mmDN 80PN 40Flanged ends
100 mmDN 100PN 40Flanged ends

Pricing

Catalogue unit prices, as listed under “3pc Flanged #150”. Select a size to start a quotation.

3PC Flanged Ball Valve catalogue prices by size (3pc Flanged #150)
SizeUnit priceAction
15 mmOn requestQuote 15 mm
20 mmOn requestQuote 20 mm
25 mm₹1,895Quote 25 mm
32 mmOn requestQuote 32 mm
40 mm₹3,320Quote 40 mm
50 mm₹4,810Quote 50 mm
65 mm₹7,660Quote 65 mm
80 mm₹9,050Quote 80 mm
100 mm₹13,350Quote 100 mm

Prices in INR as per the current EKVIS catalogue. Due to continuous developments and upgrades, data is subject to change without notice. Please request a quotation to confirm pricing.
