Ball Valves

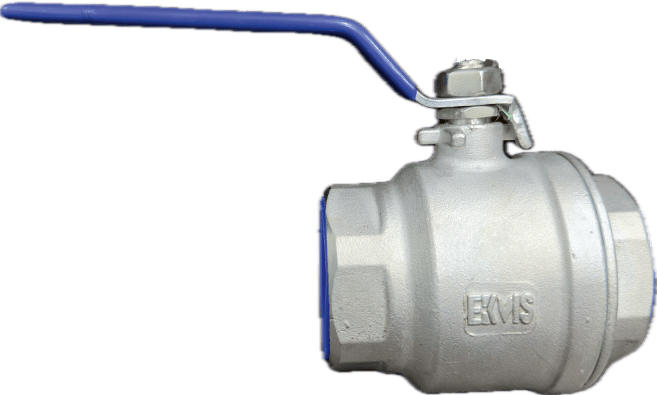

2PC Screwed End Ball Valve
A two-piece, full-port ball valve in investment-cast stainless steel, rated PN 25 and threaded to BSP, BSPT, NPT, DIN and ISO standards.
- Pressure
- PN 25
- Sizes
- 8–100 mm
- Body
- 2-piece body
- Ends
- Screwed ends
EKVISIndustrial ball valves
Engineered forprecision.Built forperformance.
Explore EKVIS industrial ball valves designed for reliable flow control across demanding applications.
2PC Screwed End Ball Valve
- Working pressure
- PN 25 / PN 40
- Size coverage
- DN 8 – DN 100
- Body specifications
- CF8 · CF8M · WCB
- 3PC design standard
- BS EN ISO 17292
01About EKVIS
Flow control, specified down to every component.
EKVIS is an industrial valve brand focused on industrial ball valves for dependable isolation. Each valve in the range is full port, precision investment cast and built around a blowout-proof stem.
Every part, from body and ball to seats, seals and handle, is specified to a recognised material grade. That makes the range straightforward to select, document and specify for food and pharmaceutical, compressed air and gas, refinery, chemical and petrochemical service.
- Ball valve families
- 02Ball valve families
- Highest working pressure rating
- PN 40Highest working pressure rating
- Nominal size coverage
- 8–100mmNominal size coverage
- Specified components per valve
- 11partsSpecified components per valve
02Product range
Two valves. One standard of precision.
Screwed-end and flanged ball valves in investment-cast stainless steel, each fully specified from body to handle lock nut.
Ball Valves

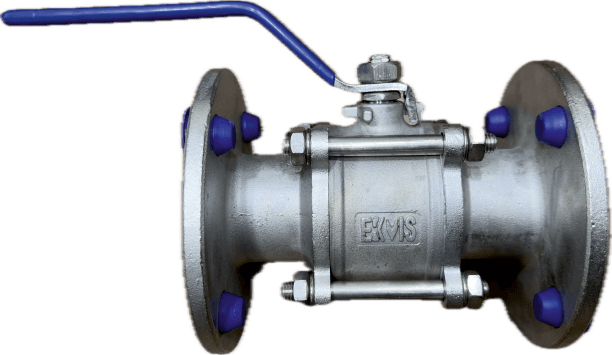

3PC Flanged Ball Valve
A three-piece, full-port flanged ball valve designed to BS EN ISO 17292 (BS 5351), rated PN 40, with stainless or carbon steel body options.
- Pressure
- PN 40
- Sizes
- 15–100 mm
- Body
- 3-piece body
- Ends
- Flanged ends
03Precision engineering
Engineered where it matters.
The details that define an EKVIS valve, documented in the catalogue and specified for every unit.
- 01
Full port design
Both valves are full port, giving a full-bore flow path through the valve.
2PC · 3PC
- 02
Blowout-proof stem
Stainless steel stem to ASTM A276, designed so it cannot be ejected under line pressure.
ASTM A276 GR. 304 / 316
- 03
Precision investment casting

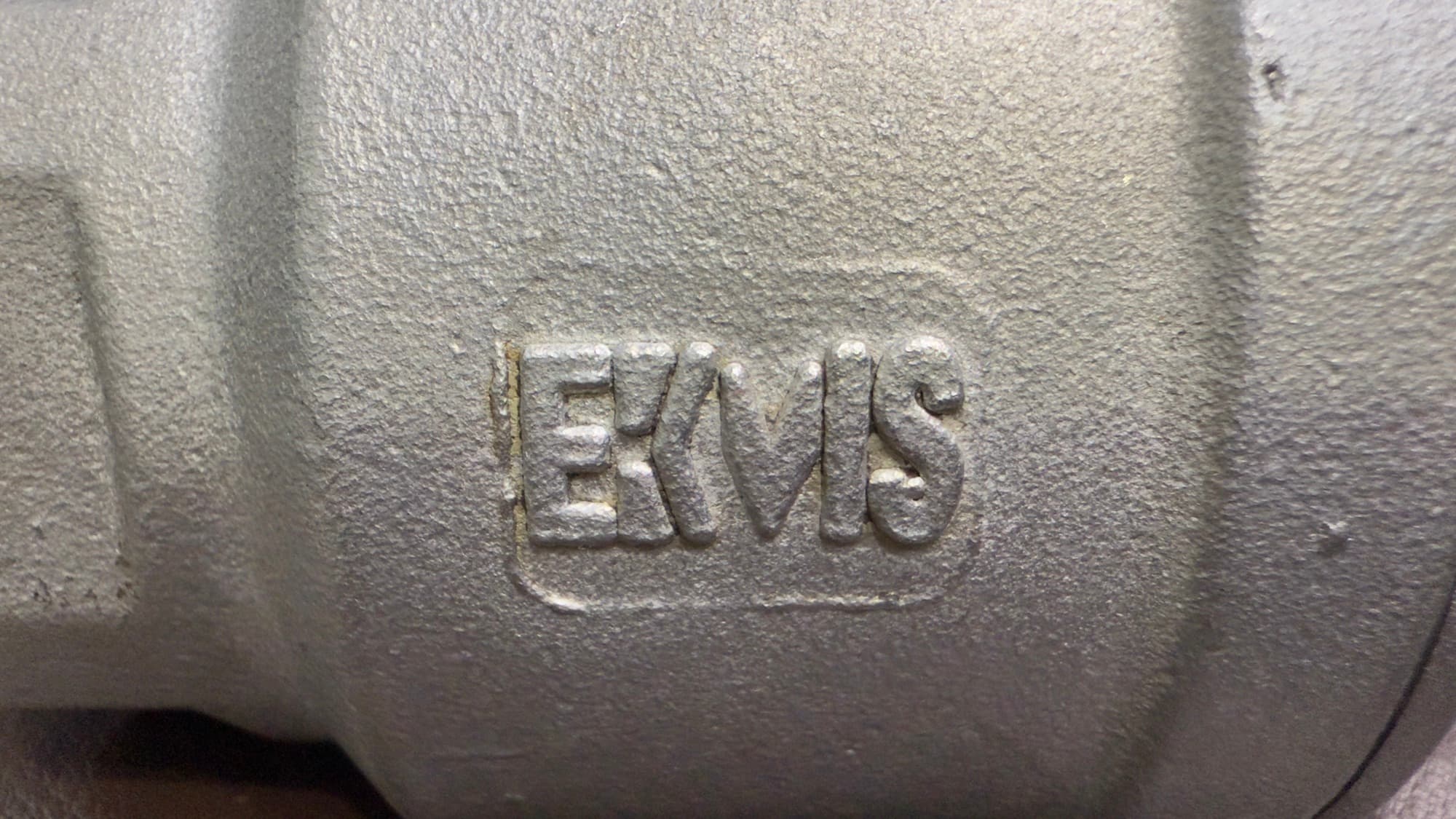

Valve bodies are precision investment cast, with the EKVIS mark cast directly into the body.
ASTM A351 GR.CF8 / CF8M
- 04
Industrial pressure ratings
PN 25 working pressure for the 2PC screwed end valve and PN 40 for the 3PC flanged valve.
PN 25 · PN 40
- 05
Locking device option
A handle with locking device is available on request for both valves.
On request
04Inspect the valve
Every component, accounted for.
01 / 05
Handle & sleeve
Stainless steel AISI 202 handle with PVC sleeve to BS 6576. Locking device available on request.
See material specificationScroll or select a markerTap a marker to inspect
05Applications
Built for the industries that keep processes moving.
The EKVIS catalogue lists these application areas for both ball valves.
06Technical data
Specified, not approximated.
Pressure ratings, construction, sizes, materials and standards, exactly as documented in the EKVIS catalogue.
Working pressure
- 2PC Screwed End
- PN 25
- 3PC Flanged
- PN 40
Construction
- 2PC Screwed End
- 2-piece, full port
- 3PC Flanged
- 3-piece, full port
Size range
- 2PC Screwed End
- 8–100 mm · DN 8–100
- 3PC Flanged
- 15–100 mm · DN 15–100
Body & ball
- 2PC Screwed End
- ASTM A351 GR.CF8 / AISI 304
- 3PC Flanged
- ASTM A351 GR.CF8/CF8M · ASTM A216 GR. WCB
Seats & seals
- Both valves
- PTFE to BS 6564
- Sleeve
- PVC to BS 6576
Standards
- 3PC design
- BS EN ISO 17292 (BS 5351)
- 2PC threads
- BS 21 BSP / BSPT / NPT / DIN 259/2999 / ISO 228 & ISO 7/1
07Compare
Choose the right valve for the line.
Screwed or flanged, PN 25 or PN 40: see the differences at a glance.
| | |
|---|---|---|
| Construction(differs) | 2-piece body | 3-piece body |
| End connection(differs) | Screwed ends | Flanged ends |
| Port | Full port | Full port |
| Working pressure(differs) | PN 25 | PN 40 |
| Size range(differs) | 8 mm – 100 mm (DN 8 – DN 100) | 15 mm – 100 mm (DN 15 – DN 100) |
| Design standard(differs) | Not stated in catalogue | BS EN ISO 17292 (BS 5351) |
| Thread standards(differs) | BS 21 BSP / BSPT / NPT / DIN 259/2999 & ISO 228 & ISO 7/1 | — (flanged ends) |
| Body material(differs) | ASTM A351 GR.CF8/AISI 304 | ASTM A351 GR.CF8/CF8M/ ASTM A216 GR. WCB |
| Stem | Blowout-proof | Blowout-proof |
| Manufacture | Precision investment cast | Precision investment cast |
| Locking device | Available on request | Available on request |
Marks a difference between the two valves.
